JSBSim Commander



JSBSimCommander is a platform-independent, open source editor for creating and editing JSBSim aircraft models. Originally created by Matthew Gong, JSBSim Commander is actively under development and supported by Matthew and various members of the JSBSim development team.

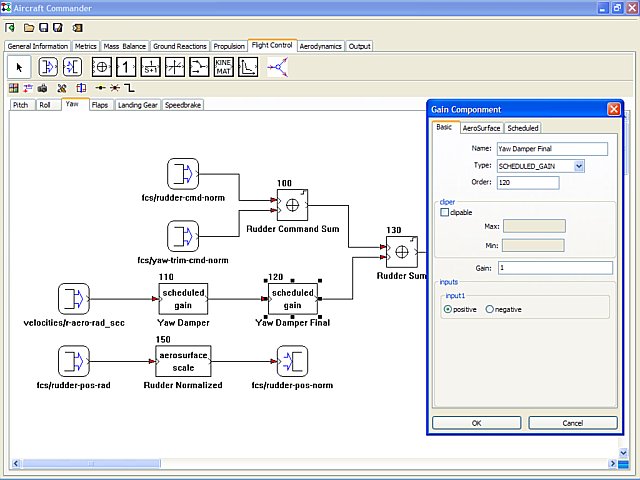

The flight control system editor features a drag and drop capability for building up a set of control laws using components such as a gain, filter, summer, deadband, integrator, etc.

Flight Control System Editor

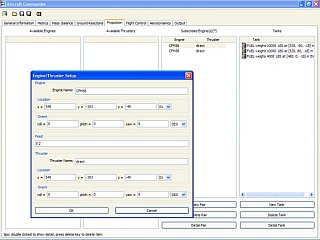

The propulsion devices for a vehicle can be assembled using the propulsion editor.


Propulsion System Editor


Tables used in modeling aerodynamic effects can be visualized using the table editor.


Table Editor

For more information about JSBSim, see www.jsbsim.org.

To download JSBSim Commander, click here .
